Emits a warning trace message to Trace History.

S# Implementation
Copy
public static void TraceWarning(
   string message
)

Parameters

message

Type: string

Remarks

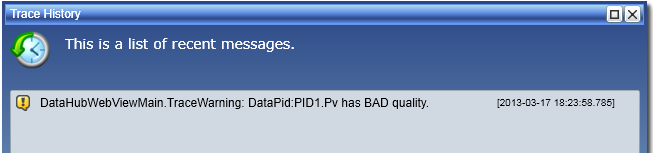

To see a list of trace messages, select Tools | Diagnostics | View Trace History.

Typically, the Trace History dialog is configured to display warning and error messages only. You may have to modify the filter settings and/or your trace configuration options. For more information, see Troubleshooting.

Example
This example illustrates how to detect a data Quality problem with a data point. When the quality of DataPid:PID.Pv is not GOOD, the code emits a trace message and displays a message dialog.

Since GET automatically triggers the script to be reexecuted every time the data point value changes, the qualityIsBad flag will be reevaluated on each point change.

Copy
 var pt = GET("DataPid:PID1.Pv");
 var qualityIsBad = pt.Quality < 192;

 if (qualityIsBad)
 {
   var msg = string.Format("{0} has BAD quality.", pt.PointName);
   WV.TraceWarning(msg);
   WV.MsgBox(msg, pt.PointName, Severity.Warning);
 }
See Also
